Author Topic: Wiring nightmare on a Strat (Read 10934 times)

chrisheyes · « **Reply #15 on:** November 26, 2005, 10:34:48 AM »

Sorry it's taken so long to get the photos up, my camera batteries were flat.

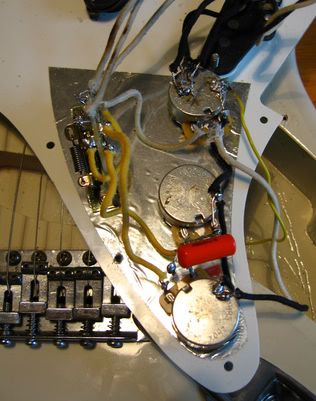

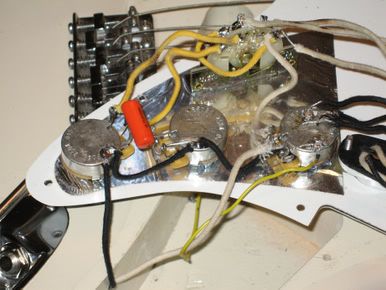

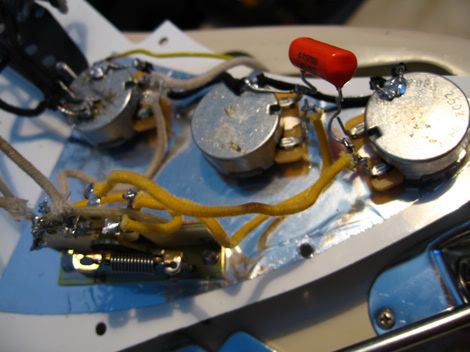

General Views

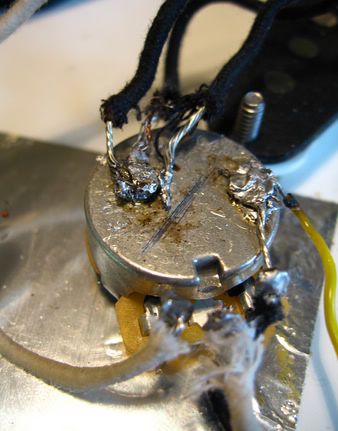

Volume pot connections

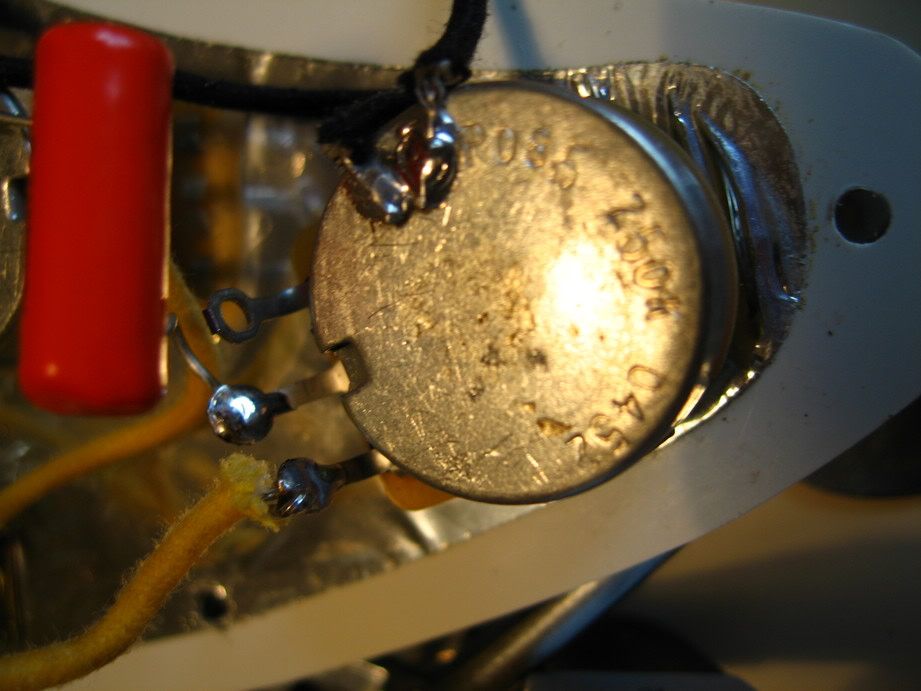

Bottom Tone Pot Connection

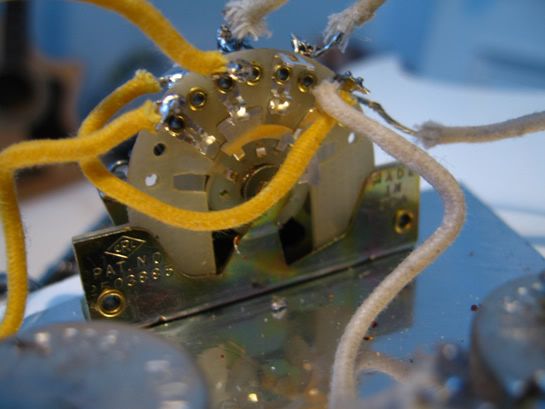

5 Way swtich Connections

Middle Tone Pot Connections

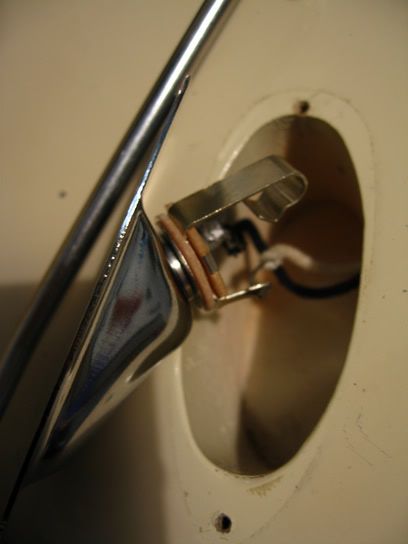

Jack Plug Connection

Thanks for your assistance HJM :D

PhilKing · « **Reply #16 on:** November 26, 2005, 11:38:09 PM »

Everything looks good in those pictures apart from the pickup grounds (black wires) look a bit suspect. There seems to be a lot of exposed live wires to the switch too. Push the cloth cover closer to make sure they don't get pushed into a short.

HJM · « **Reply #17 on:** November 27, 2005, 07:24:05 AM »

First thing I've spotted - the tone cap is wrong. The two lugs of the tones need to be joined together, then the cap goes to ground, at the moment the cap is in between the two lugs. As it is you have the middle pot wired ike a second volume!

There's a nice clear diagram here

http://www.stewmac.com/freeinfo/I-3192.html

chrisheyes · « **Reply #18 on:** November 27, 2005, 10:48:40 AM »

Dr HJM and Dr Phil King you have diagnosed the problem

Many many thanks chaps.

1. There must have be a cold joint on the back of the vulume pot

2. The tone capacitor did go to ground after on the middle tone pot, but again the joint was cold !!

Holy moly that took an age and almost my sanity.

I've put a Van Zandt Vintage Hot in the bridge until the Sinner comes back from Tim.

The guitar now has a whole new tonal dinemsion that the old wiring harness didn't allow.

PhilKing · « **Reply #19 on:** November 27, 2005, 12:32:13 PM »

Glad it is all working now. Cold joints can be a buggar (I am speaking from experience!).

HJM · « **Reply #20 on:** November 27, 2005, 12:44:48 PM »

Excellent...be interesting to hear what you think about the vintage hot vs the sinner!

chrisheyes · « **Reply #21 on:** November 27, 2005, 07:30:19 PM »

Quote from: HJM

Excellent...be interesting to hear what you think about the vintage hot vs the sinner!

The differece better the two is dramatic. The guitar now has output volume problems as the Trilogy pickups are not calibrated to work together with Van Zandt Vintage Hots.

The Vintage Hot has a lot more top end frequencies but cannot give the harmnic tones when driven hard like the Sinner can.

The Sinner gives the high output overdriven tone - The Van Zandt is a different animal altogether.

I can't wait for my Sinner to return.

With the new high quality components in the guitar the Sinner will deliver at it's best.
