How do I install this one?
« on: June 20, 2011, 06:50:15 PM »
Argh :)

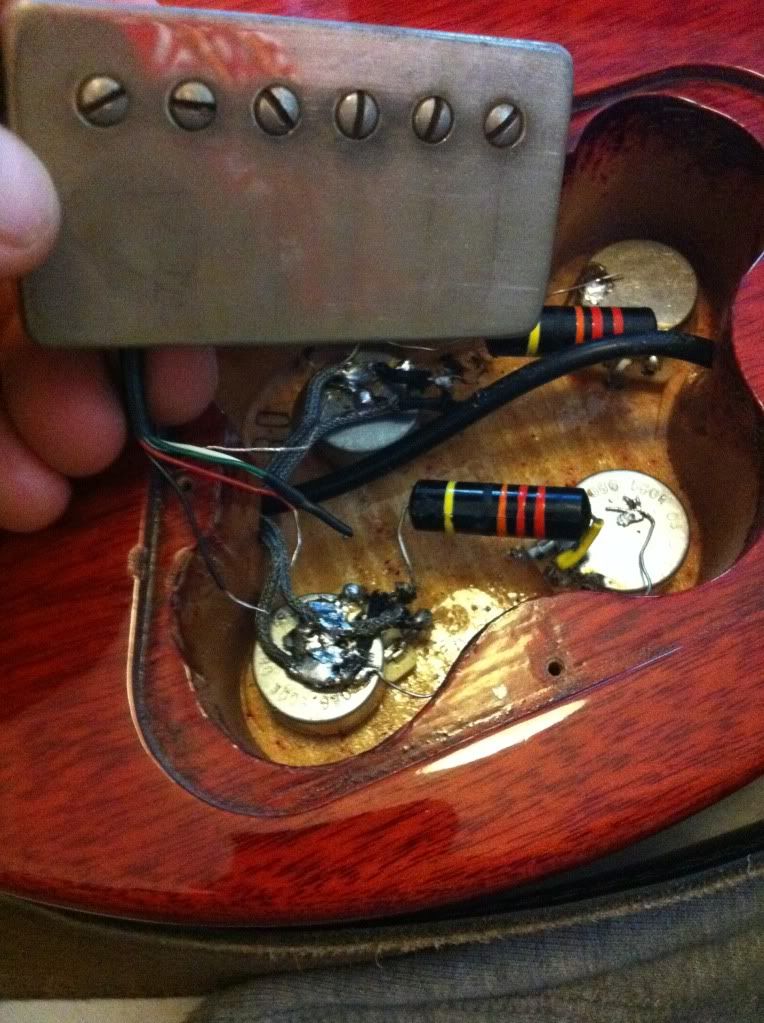

Where do the wires go here?


Logged

Jofipe

  • Flyweight
  • *
  • Posts: 61
Re: How do I install this one?
« Reply #1 on: June 20, 2011, 07:19:30 PM »
Would anyone have a picture of their installation? :)
Logged

Transcend

  • Guest
Re: How do I install this one?
« Reply #2 on: June 20, 2011, 08:03:08 PM »
The red goes to the first tag of the volume pot for that pickup position

the green and white stayed taped off together (unless you want splits/taps/parrallel wiring)

the black and bare go to the back of a pot
Logged

Jofipe

  • Flyweight
  • *
  • Posts: 61
Re: How do I install this one?
« Reply #3 on: June 20, 2011, 08:23:30 PM »
Thats it? just those three wirings?  cool.

Logged

Transcend

  • Guest
Re: How do I install this one?
« Reply #4 on: June 20, 2011, 08:25:09 PM »
yeah thats all for standard humbucker wiring.
Logged

Jofipe

  • Flyweight
  • *
  • Posts: 61
Re: How do I install this one?
« Reply #5 on: June 20, 2011, 08:25:55 PM »
Thank you :))
Logged

Transcend

  • Guest
Re: How do I install this one?
« Reply #6 on: June 20, 2011, 08:26:31 PM »
No problem.

Enjoy the pickup!

Which is it by they way?
Logged

Jofipe

  • Flyweight
  • *
  • Posts: 61
Re: How do I install this one?
« Reply #7 on: June 20, 2011, 08:33:03 PM »
Emerald bridge.. and iv got a Mule bridge.  should be interesting.  its a LP as you can maybe see.

Logged

Jofipe

  • Flyweight
  • *
  • Posts: 61
Re: How do I install this one?
« Reply #8 on: June 20, 2011, 08:49:56 PM »
I meant Mule neck.
Logged

Transcend

  • Guest
Re: How do I install this one?
« Reply #9 on: June 20, 2011, 08:58:55 PM »
Ah awesome if possible record some clips i am quite interested in the emerald
Logged

Jofipe

  • Flyweight
  • *
  • Posts: 61
Re: How do I install this one?
« Reply #10 on: June 20, 2011, 09:02:48 PM »
I will :)
BTW, what goes to the one with the bumblebee?   Is it the same for the neck PU?
Logged

Transcend

  • Guest
Re: How do I install this one?
« Reply #11 on: June 20, 2011, 09:12:51 PM »
Nothing goes to those other than whats already there.

The pickups are same bridge and neck just connected to the respective volume pot

here i found the LP wiring diagram on the main site for you

http://www.bareknucklepickups.co.uk/main/downloads/schematics/general/humbuckers/2_hum__2_vol__2_tone__4_con__3_way_toggle.pdf
